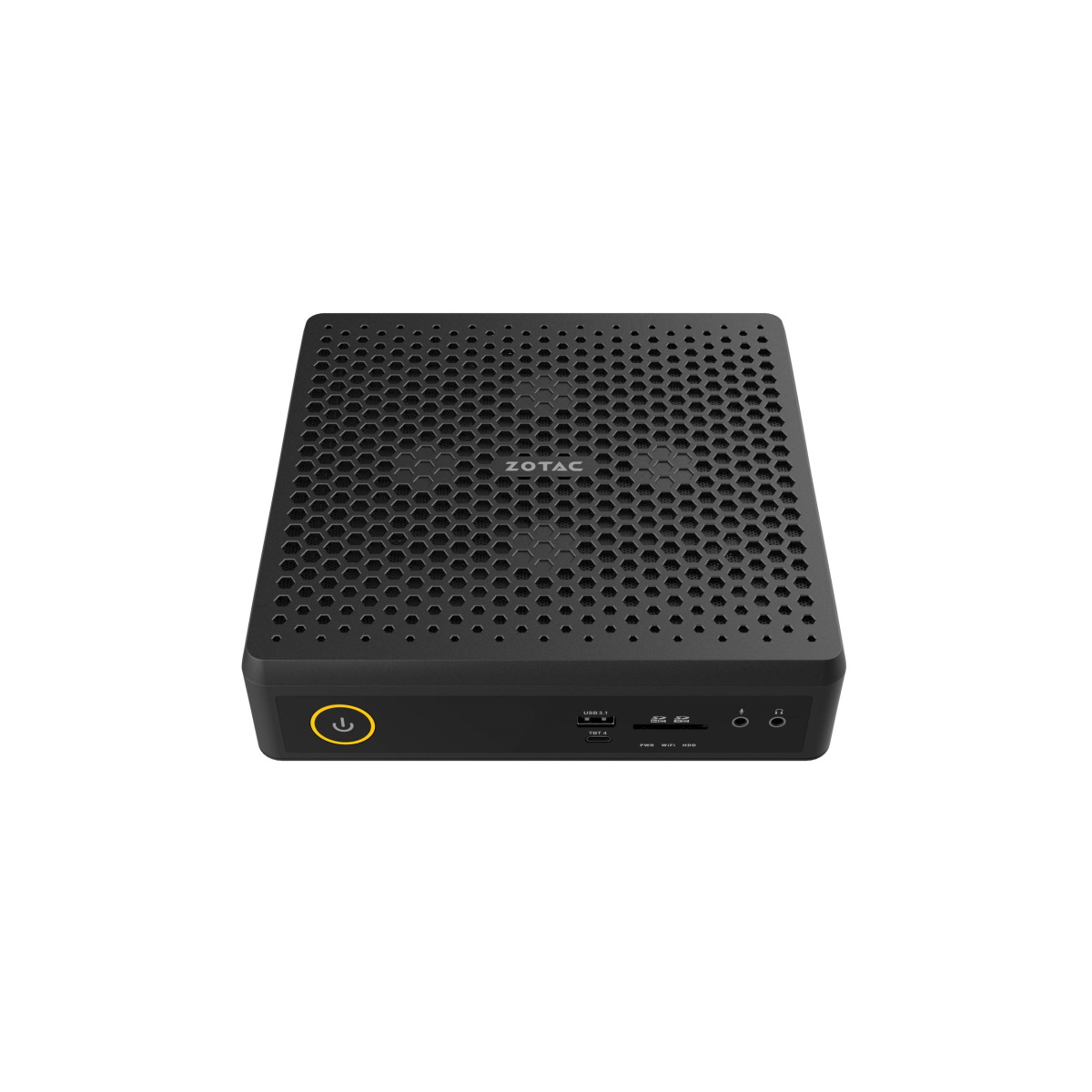

Intel® CoreTM i7 13700HX | up to 5.00 GHz (P-core), 3.70 GHz (E-core) clock frequency / 0 MB DDR5 RAM | / NVIDIA GeForce RTX 4070 (8 GB) / Barebone (Ultra Small Form Factor) / WiFi 6 (802.11ax) | Bluetooth 5.2 / HDMI 1x | Displayport 2x / 5x USB 3.2 – 5Gb/s / Without operating system
Serie - PC-Systeme | ||
Produktkategorie | Barebone | |
PC-Prozessor | ||
Bezeichnung | Intel® Core™ i7 | |
Typ | 13700HX | |
Taktfrequenz | 2,10 GHz (P-Core) / 1,50 GHz (E-Core) | |
Autom. Übertaktung (bis zu) | 5,00 GHz (P-Core), 3,70 GHz (E-Core) | |
Kerne/Threads | 8 (P-Core) + 8 (E-Core)/24 | |
TDP (Thermal Design Power) | 55 Watt | |
Technologie | Intel® Turbo-Boost-Technik 3.0 | |
Intel® Hyper-Threading-Technologie | ||
"Raptor Lake" | ||
CPU - Hersteller | Intel | |
Mainboard | ||
Bezeichnung | Intel | |
PC-Grafik | ||
Modell | NVIDIA | |
GeForce RTX 4070 | ||
Speicher | 8 GB | |
Speichertyp | GDDR6 | |
DirectX | 12 | |
Videobeschleunigung | NVIDIA® PureVideo® HD Technologie | |
Technologie | NVIDIA-CUDA™-Technologie; NVIDIA-PhysX™-Technologie; GeForce 3D VISION Ready | |
HDMI-Anschluss | 1x | |
DisplayPort-Anschluss | 2x | |
4K-Unterstützung | Ja | |
HDMI-Audio | Ja | |
Arbeitsspeicher | ||
Größe | 0 MB | |
DDR5 | ||
Taktung | 4800 MHz | |
Verbaut | 0 von 2 | |
max. Erweiterung auf | 64 GB | |
Speicher | ||
Anschlussart/Typ (SSD) | PCI Express 4.0 | |
Erweiterungsplatz | mSATA | |
Laufwerk | ||
ohne Laufwerk | ||
PC-Eigenschaften | ||
Gehäusetyp | Ultra Small Form Faktor | |
Netzteil (Leistung) | 330W (extern) | |
Sound | onBoard | |
PC-Schnittstellen | ||
LAN (RJ-45) | 1x 2.5 GBit | |
W-LAN | WiFi 6 (802.11ax) | |
Bluetooth | 5.2 | |
USB 3.2 Gen1 - 5Gb/s (USB 3.0) | 5x | |
Thunderbolt 4 | 1x | |
Mikrofon | Ja | |
Front-/Seitenanschlüsse | ||
Speicherkartenleser | Ja | |
Audio | Ja | |
USB 3.1 Gen1 - 5Gb/s (USB 3.0) | 1x | |
Thunderbolt 4 | 1x | |
interne Steckplätze | ||
DIMM | 2x | |
M.2 | 2x | |
Betriebssystem/Software | ||
Betriebssystem | Ohne Betriebssystem | |
PC-Abmessungen | ||
Abmessungen | (BxHxT) | |
Breite | 21 cm | |
Höhe | 6.2 cm | |
Tiefe | 20.3 cm |
