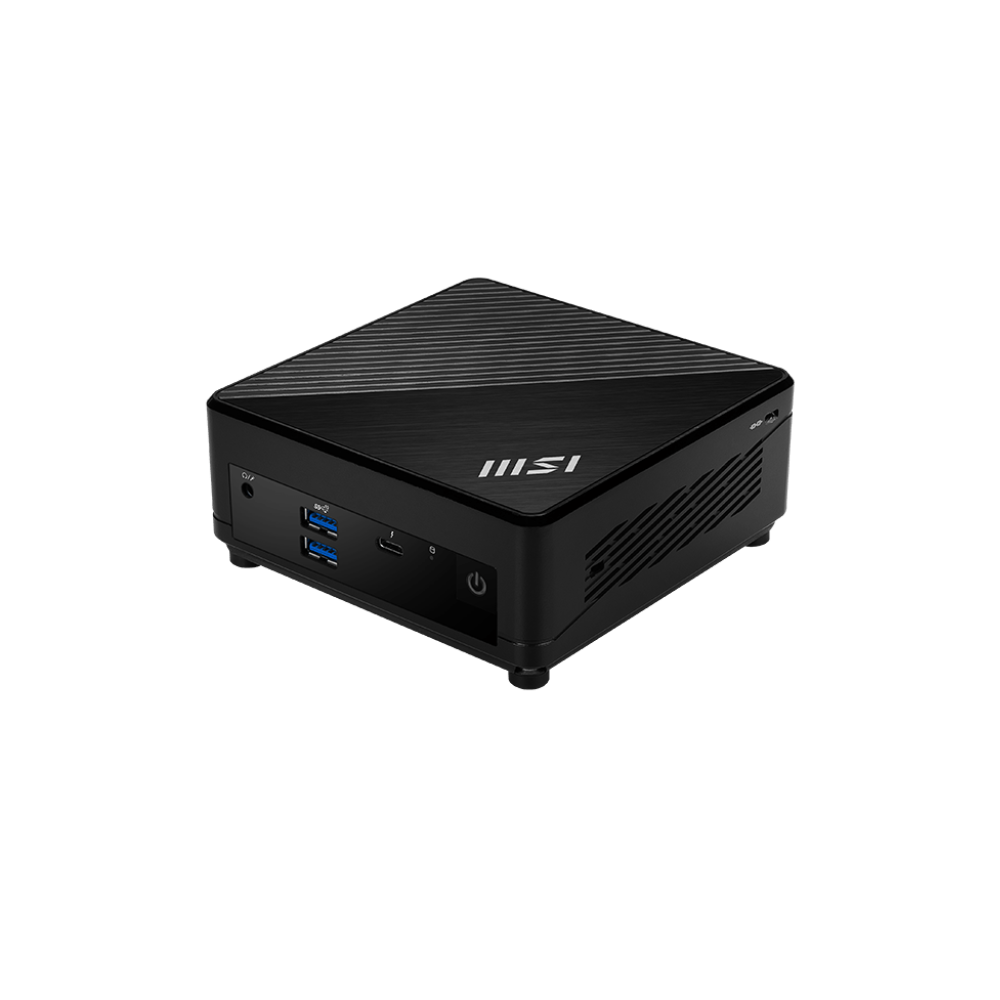

Intel® Core™ i5 1235U | bis zu 4,40 GHz (P-Core), 3,30 GHz (E-Core) Taktfrequenz / 0 MB DDR4 RAM | / Intel® ( ) / Barebone ( Ultra Small Form Faktor ) / WiFi 6E (802.11ax) | Bluetooth 5.3 / HDMI 1x | Displayport 1x / USB 3.2 – 10Gb/s 4x | USB 3.2 – 5Gb/s / Ohne Betriebssystem
| Serie - PC-Systeme | ||
| Produktkategorie | Barebone | |
| PC-Prozessor | ||
| Bezeichnung | Intel® Core™ i5 | |
| Typ | 1235U | |
| Taktfrequenz | 2x 1,30 GHz + 8x 0,90 GHz | |
| Autom. Übertaktung (bis zu) | 4,40 GHz (P-Core), 3,30 GHz (E-Core) | |
| Kerne/Threads | 2 (P-Core) + 8 (E-Core)/12 | |
| Technologie | Intel® Turbo-Boost-Technik 3.0 | |
| Intel® Hyper-Threading-Technologie | ||
| "Alder Lake-M" | ||
| CPU - Hersteller | Intel | |
| Kühlung | luftgekühlt | |
| Mainboard | ||
| Chipsatz | Intel® System-on-Chip | |
| PC-Grafik | ||
| Modell | Intel® | |
| HDMI-Anschluss | 1x | |
| DisplayPort-Anschluss | 1x | |
| HDMI-Audio | Ja | |
| Arbeitsspeicher | ||
| Größe | 0 MB | |
| DDR4 | ||
| Verbaut | 0 von 2 | |
| max. Erweiterung auf | 64 GB | |
| Speicher | ||
| Erweiterungsplatz | M.2 2280 PCIe 3.0 4x NVMe | |
| Laufwerk | ||
| ohne Laufwerk | ||
| PC-Eigenschaften | ||
| Gehäusetyp | Ultra Small Form Faktor | |
| Gewicht | 0.59 kg | |
| Netzteil (Leistung) | 65 Watt | |
| Sound | onBoard | |
| Audio-Eigenschaften | Realtek ALC256 | |
| PC-Schnittstellen | ||
| LAN (RJ-45) | 1x Gigabit (1000 MBit) | |
| W-LAN | WiFi 6E (802.11ax) | |
| Bluetooth | 5.3 | |
| USB 3.2 Gen2 - 10Gb/s | 4x | |
| Thunderbolt 4 | 1x | |
| Line-Out | Ja | |
| Mikrofon | Ja | |
| seriell | Ja | |
| Front-/Seitenanschlüsse | ||
| Audio | Ja | |
| USB 3.2 Gen2 - 10Gb/s | 2x | |
| Thunderbolt 4 | 1x | |
| interne Steckplätze | ||
| DIMM | 2x | |
| M.2 | 1x | |
| 2,5" Schacht | 1x | |
| Betriebssystem/Software | ||
| Betriebssystem | Ohne Betriebssystem | |
| PC-Abmessungen | ||
| Breite | 12.4 cm | |
| Höhe | 5.4 cm | |
| Tiefe | 12.4 cm | |
| Gewicht | 0.59 kg | |
| Zubehör | ||
| Zubehör | Netzkabel | |
