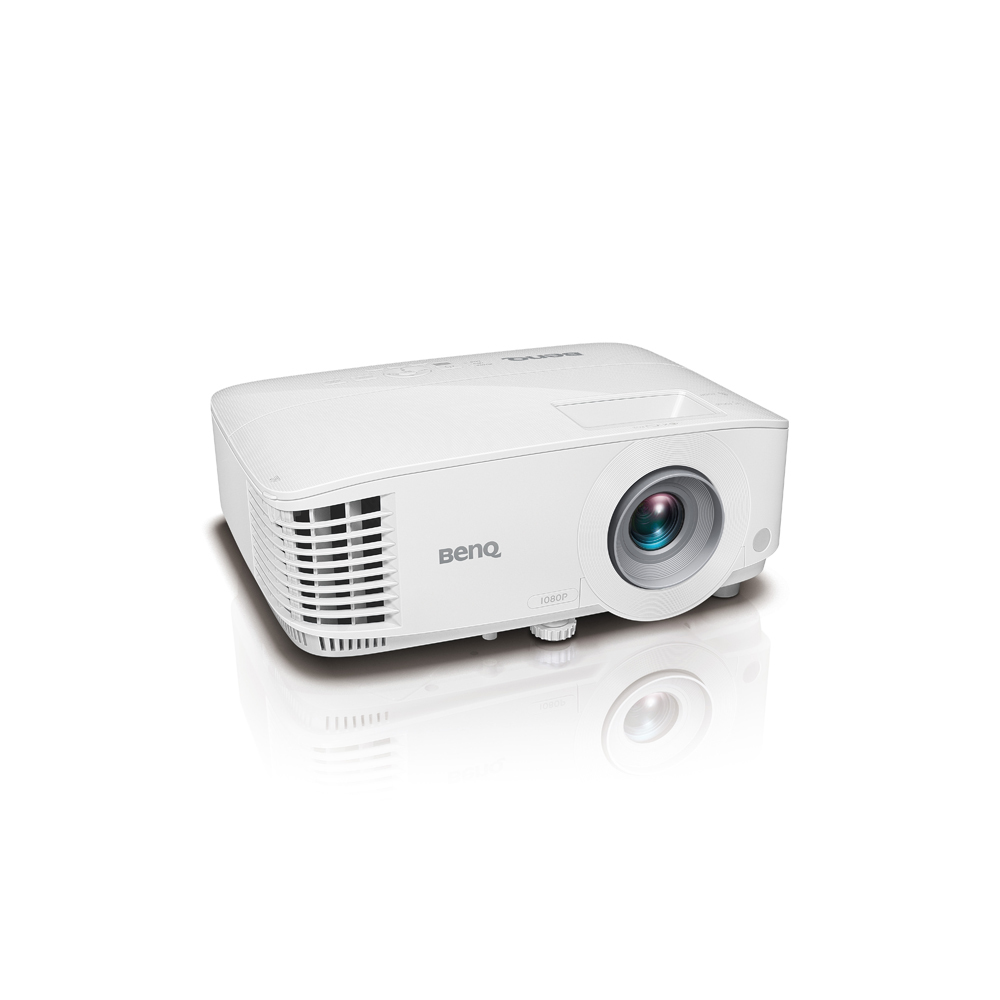

DLP Business Beamer | Full HD Resolution 1,920 x 1,080 / Brightness 4,000 ANSI Lumens | Contrast 16,000:1 / refresh rate max. 120 Hz | 1.3x Zoom / Projection size 51 inches – 196 inches | 10W speakers / Noise level 36 dB | HDMI, VGA, USB
| Projektionsdaten | ||
| Typ | DLP-Beamer | |
| Technologie | DLP | |
| Helligkeit | 4000 ANSI-Lumen | |
| Kontrast | 16000 : 1 | |
| Auflösung | 1.920 x 1.080 | |
| Auflösungsform | Full HD 1080p | |
| Video-Modi | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p? | |
| Video-Normen | NTSC, PAL, SECAM? | |
| Bildformat | 16:9 (5 wählbar) | |
| Farben | 1,07 Mrd. | |
| Horizontalfrequenz | 15K~102KHz? | |
| Vertikalfrequenz | 23~120Hz? | |
| Full-HD | Ja | |
| 3D | Ja | |
| Besonderheiten | USB Reader, LAN Control, AMX/ PJ Link/Crestron/Extron IPL Compatible. MDA Compatibility LAN Display, Optional Wireless Display, Split Screen, Support Meeting/Classroom collaboration via QCast Software.(Conference Control) | |
| Betriebsgeräusch (ECO) | 29 db(A) | |
| Betriebsgeräusch (Normal) | 33 db(A) | |
| Objektiv | ||
| Projektionsgröße min. | 0.762 m | |
| Projektionsgröße max. | 7.62 m | |
| Projektionsverhältnis min. | 1.15 | |
| Projektionsverhältnis max. | 1.5 | |
| Trapezkorrektur | Vertikal ± 30° & Horizontal ± 20° | |
| Trapezkorrektur | Ja | |
| Projektionsoffset | 105% ± 2.5% | |
| Zoom Faktor | 1.3 x | |
| Zoom Funktion | Optisch | |
| Zoom Einstellung | Manuell | |
| Fokus | Manuell | |
| Lichtstärke | F=2.59~2.91 | |
| Brennweite | f=16.88~21.88mm | |
| Lampe | ||
| Leistung | 240 Watt | |
| Lebensdauer (Normalmodus) | 400 Stunden | |
| Lebensdauer (ECO-Modus) | 8000 Stunden | |
| Lebensdauer (Extrem-ECO) | 15000 Stunden | |
| Anschlüsse | ||
| HDMI | 2x | |
| VGA | 2x | |
| VGA-Ausgang | Ja | |
| S-Video | 1x Mini DIN 4 | |
| Audio-IN | Ja | |
| Audio-OUT | Ja | |
| L/R Audio | Ja | |
| USB Typ A | Ja | |
| USB Typ Mini-B | Ja | |
| LAN (RJ45) | Ja | |
| LAN Control | Ja | |
| LAN Display | Ja | |
| Steuerschnittstelle | RS232 | |
| Einsatzbereich | ||
| Heimkino | Ja | |
| Schulen | Ja | |
| Unternehmen | Ja | |
| Sonstige Angaben | ||
| Lautsprecher | 1 x 10 Watt | |
| MHL | Ja | |
| Leistungsaufnahme Standard | 320 Watt | |
| Leistungsaufnahme ECO | 240 Watt | |
| Sicherheit | Kensington Lock, Security Bar? | |
| Geräuschentwicklung | 33 dB | |
| Geräuschentwicklung ECO | 29 dB | |
| Frontprojektion | Ja | |
| Tischprojektion | Ja | |
| Deckenprojektion | Ja | |
| Rückprojektion | Ja | |
| Lieferumfang | ||
| Fernbedienung | Ja | |
| Handbuch | ja, auf CD | |
| Netzkabel | Ja | |
| Objektiv-Abdeckung | Ja | |
| sonstiges | Fernbedienung inkl. Batterien, Garantieerklärung, QSG (4J.JGV01.001) | |
| VGA-Kabel | Ja | |
| Abmessungen | ||
| Breite | 296 mm | |
| Höhe | 120 mm | |
| Tiefe | 221 mm | |
| Gewicht | 2.5 kg | |
